Architecture applies to several disciplines

• landscape architecture
• interior architecture,
• urban design,
• mechanical engineering,
• naval architecture,
• etc.

Software architecture

The set of significant decisions about the organization of a software system, the selection of the structural elements and their interfaces ...together with their behavior ..., the composition of these ... elements ..., and the architectural style.

— Kruchten: The Rational Unified Process

Architecture represents the significant decisions, where significance is measured by cost of change.

— Grady Booch

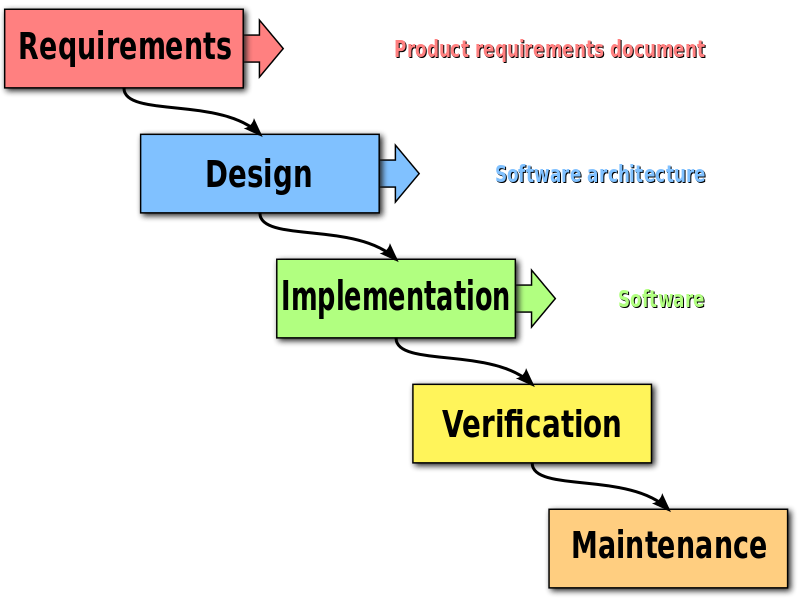

Waterfall development

Agile development

The Scrum framework

Agile development

• Agile manifesto values:

  • Individuals and interactions over processes and tools
  • Customer collaboration over contract negotiation
  • Responding to change over following a plan
  • Working software over comprehensive documentation

• Many organizations started to not create any design at all, causing long-term maintainability issues.

Evolutionary architecture (I)

• An approach to architecture that embraces change in an agile manner.
• The key is to create enough pieces of architectural design before coding.
• The software architecture represents the set of significant decisions, where significance is measured by the cost of changes.
• Major decisions have to do with technology choices, selection of the proper infrastructure, application of certain tactics and design patterns, etc

Evolutionary architecture (II)

• Propose hypotheses and then write some code to validate whether the solution posed is feasible and fulfills the expected requirements.
• Prove the architecture with concrete experiments, and proof of concepts.
• Identify and control risks and tackle the highest priority ones in the early stages.
• However, not all decisions have to be made in the beginning. It is much better to defer decisions until they are strictly needed. We should keep the options open for as long as possible.

1. Everything in software architecture is a trade off
(All meaningful decisions have advantages and downsides)

2. 'Why' is more important than 'How'
(Question everything)

3. Most architecture decisions aren’t binary but rather exist on a spectrum between extremes.

Process inputs

The creation process of the software architecture starts with a set of inputs:

• Business objectives
• Functional requirements
• Information requirements
• Non-functional requirements
• Constraints

Business objectives

What are the goals (measurable) of the system to develop or maintain?

• What are the stakeholders' expectations?
• How critical will the software be?
• What is the time-to-market?
• Are the project calendar and costs well established?
• How variable are the rules that will govern the software?

Functional requirements

Some requirements engineering techniques should be conducted prior to designing the architecture, to capture and analyze the behavior of the software to develop.

Information requirements

The static nature of the system is modeled with a conceptual model considering the business vocabulary.

Non-functional requirements

Quality attribute requirements, namely performance efficiency, compatibility, operability, reliability, security, portability, and maintainability.

Constraints

• Both the customer and development organization can make certain technical or organizational decisions.
• These constraints limit the number of potential alternatives
• Software constraints: programming languages, development frameworks, database providers, etc.
• Hardware constraints: sensor and actuator manufacturers, execution platforms, etc.

Process outputs

• Software architecture is embedded in the source code itself,

• However, there are other aspects that are not directly (easily) observable in the code.

Alternatives for describing architectures

• Architectural Decision Records (ADR), by using structured templates
• Textual representations, by using Architecture Description Languages (ADL)
• Visual models, according to specifications like UML or SysML

Expectations of a (Software) Architect

• Make architecture decisions
• Continually analyze the architecture
• Keep current with latest trends
• Ensure compliance with decisions
• Understand diverse technologies, frameworks, platforms, and environments
• Know the business domain
• Lead a team and possess interpersonal skills
• Understand and navigate organizational politics

The role is usually assumed by a senior developer

Skills

• Good interpersonal skills to deal with stakeholders who may have different (even contradictory) needs
• Solid knowledge of the business domain.
• Aware of new development techniques, practices, and tools.
• Self-experience for correctly applying best practices, design principles, and patterns.

Responsibilities (I)

• Software architects usually code as other developers and perform code reviews, so code low-level understanding is mandatory.
• Architects must help developers understand the overall system architecture.
• They must continually analyze the architecture and ensure compliance of the code with existing decisions during software evolution.

Responsibilities (II)

• Define guidelines and checklists to ensure the technical success of the project.
• Analyze the pros and cons of the different alternatives and keep decision records.
• Explicitly document the software architectures by means of visual models or textual representations.

Benefits (I)

• The way of programming should always be the same and follow the same structure, the resulting code will be easily recognizable and ...

• facilitates the development and maintenance of the software.

• simplifies the deployment and operation of the systems.

Benefits (II)

• The software architecture documentation provides...
  • a clear vision and roadmap for the team to follow.
  • a common language to express, negotiate and resolve the stakeholder's expectations.
  • a valuable resource to be used as the basis for the training of new project members.

• Architecture = the set of significant decisions, the style of design, the organization into components and the way of communication
• Process: evolutionary, addressing risks, proofs of concepts
• Inputs: business objectives, software requirements, know-how
• Outputs: source code, decision records, text/visual representations
• Skills: interpersonal, business, technical knowledge & expertise
• Responsabilities: code, review, help, analyze, define, document
• Benefits: code easy to maintain, documentation helpful for all

Architecture description

Documenting software architectures helps us understand the big picture of the systems, providing a shared vision and a common vocabulary for all stakeholders.

• In the building industry, architecture is usually documented with site plans, floor plans, elevation views, cross-section views, and detailed drawings.
• In software engineering, architecture description is the explicit work product expressing an architecture of a system, usually via code, texts and graphics.

Missing aspects...

• Why certain technologies were chosen?
• Which tactics, principles, and patterns have been used?
• How the structural elements are deployed at runtime?
• How they communicate themselves?

Architectural decision records (ADR)

• The architecture of a software system can be seen as the set of major design decisions on the system.

• It is very common to forget why certain decisions were made. That may lead to problems when the work team changes.

• Architectures can evolve to satisfy further requirements, so not all decisions have to be made in the beginning. We should keep the options open for as long as possible.

Architectural decision log

• It is very important to document the architecture decisions on a repository (e.g.: document, wiki page, plain file, structured data store, etc.) that collects them.

• These decisions must be defined using a proper format and structure, for example, using Y-statements or MADRs.

Y-statement template

1. In the context of use case/user story/functional req/component,
2. facing non-functional req/quality concern,
3. we decided for <selected option,
4. and neglected alternative options,
5. to achieve benefit/quality attributes/desired consequences,
6. accepting drawbacks/downside/undesired consequences,
7. because additional rationale.

Example of a Y-statement template

In the context of the Web shop service, facing the need to keep user session data consistent and current across shop instances, we decided for the Database Session State pattern and against Client Session State or Server Session State to achieve data consistency and cloud elasticity, accepting that a session database needs to be designed and implemented.

Example of a MADR

# Choose a format and structure for managing ADRs

## Context and Problem Statement

We want to record architectural decisions made in this project.
Which format and structure should these records follow?

## Considered Options

* [MADR]
(https://adr.github.io/madr/) 2.1.0 - The Markdown Architectural Decision Records
* [Y-Statements] (https://www.infoq.com/articles/sustainable-architectural-design-decisions)
* [Michael Nygard's template]
(http://thinkrelevance.com/blog/2011/11/15/documenting-architecture-decisions)
* [Other templates listed at] (https://github.com/joelparkerhenderson/architecture_decision_record)
* Formless - No conventions for file format and structure

Example of a MADR (cont.)

## Decision Outcome

Chosen option: "MADR 2.1.0", because

* Implicit assumptions should be made explicit.
  Design documentation is important to enabling people to understand the decisions later on.
  See also
  [A rational design process: How and why to fake it](https://doi.org/10.1109/TSE.1986.6312940).
* The MADR format is lean and fits our development style.
* The MADR structure is comprehensible and facilitates usage & maintenance.
* The MADR project is vivid.
* Version 2.1.0 is the latest one available when starting to document ADRs.

Architecture Description Languages (ADL)

• Formal languages targeted at designing software architectures

• Define the components conforming to our system, the arrangement of those structural elements, and the ways they communicate with each other.

• Examples: AADL, ABACUS, ACME, or xADL.

Architecture Analysis and Design Language (AADL)

• A specification dedicated to the modeling and analysis of real-time, safety-critical, embedded systems.

• This standard provides software, hardware, and system component abstractions to specify and analyze the systems and map onto computational hardware elements.

AADL example

package Hello_World                                 -- Entities are attached to a package
public
  subprogram Hello_Spg_1
   properties                 --  Simple subprogram: actual behavior, not modeled in AADL
    Source_Language => (C);                              --  Implementation language is C
    Source_Name     => "user_hello_spg_1";       --  Name of the corresponding C function
    Source_Text     => ("hello.c");                               --  Implementation file
  end Hello_Spg_1;

  thread Task                                  --  A task: a concurrent flow of execution
   properties
    Priority                => 1;     --  Priority, interpretation given by the processor
    Dispatch_Protocol       => Periodic;                                     --  Periodic
    Period                  => 1000 ms;                            --  Period of the task
    Compute_Execution_Time  => 0 ms .. 3 ms;                           --  Execution time
    Compute_Entrypoint      => classifier (Hello_Spg_1);      --  Hello_Spg_1 is executed
  end Task;                                                           -- at each dispatch

  process node_a
                                  --  A process, gathers several threads as subcomponents
  end node_a;

  process implementation node_a.impl
   subcomponents
    Task1 : thread Task;
  end node_a.impl;

  processor cpu                              --  A processor provides execution resources
   properties                       -- Threads are given access to the CPU according to a
    Scheduling_Protocol => (RMS);           -– Rate-Monotonic Scheduling: a shorter cycle
  end cpu;                                   –- duration results in a higher job priority

  system rma
                                --  A system combines both hardware and software elements
  end rma;

  system implementation rma.impl
   subcomponents
    node_a : process node_a.impl;
    cpu    : processor cpu;
   properties
    Actual_Processor_Binding           -- Binding relations between hardware and software
       => (reference (cpu)) applies to node_a;    -- node_a is allocated resources on cpu
  end rma.impl;

end Hello_World;

Sketches

The first approach to software architecture

Problems with sketches

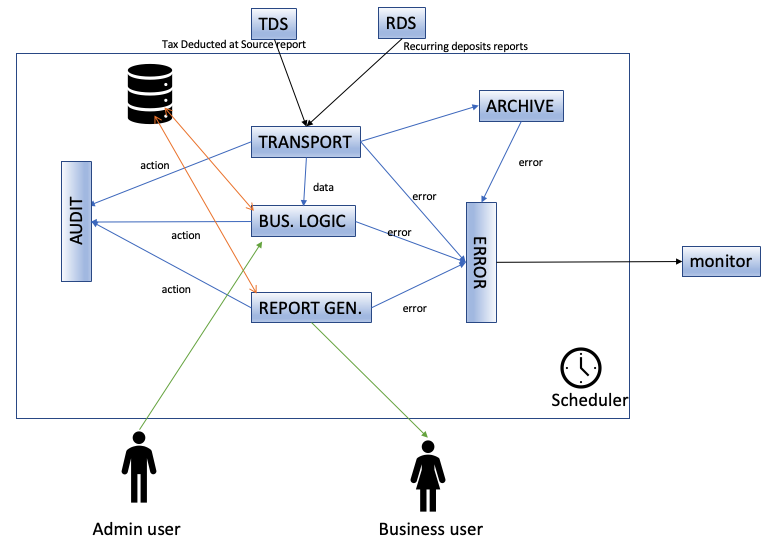

• Boxes and arrows with inconsistent notation: colors, shapes
• Ambiguous naming,
• Unlabelled relationships,
• Mixed abstractions,
• etc.

Modeling languages

• Provide well-defined semantics and unambiguous understanding.
• Examples: UML and SysML
• Model-Based Software/System Engineering (MBSE)
• Model-Driven Software/System Engineering (MDSE)
• Architectural models created with those languages capture totally or partially the design decisions during the creation of the system architecture.

Unified Modeling Language (UML)

• Open standard for software development lifecycle modeling.
• Supported by many open and proprietary (web/desktop) tools.
• Provides a set of visual notations to represent system structure and behavior.
• Use case diagrams or class diagrams are commonly used for requirements engineering purposes.

Tool support

Graphical modeling environments

• Creation of visual models by dragging and dropping modeling elements
• Examples: ArgoUML, Enterprise Architect, Visual Paradigm, Modelio, etc.

Modelio

Tool support

Textual modeling environments

• Creation of visual models by writing code

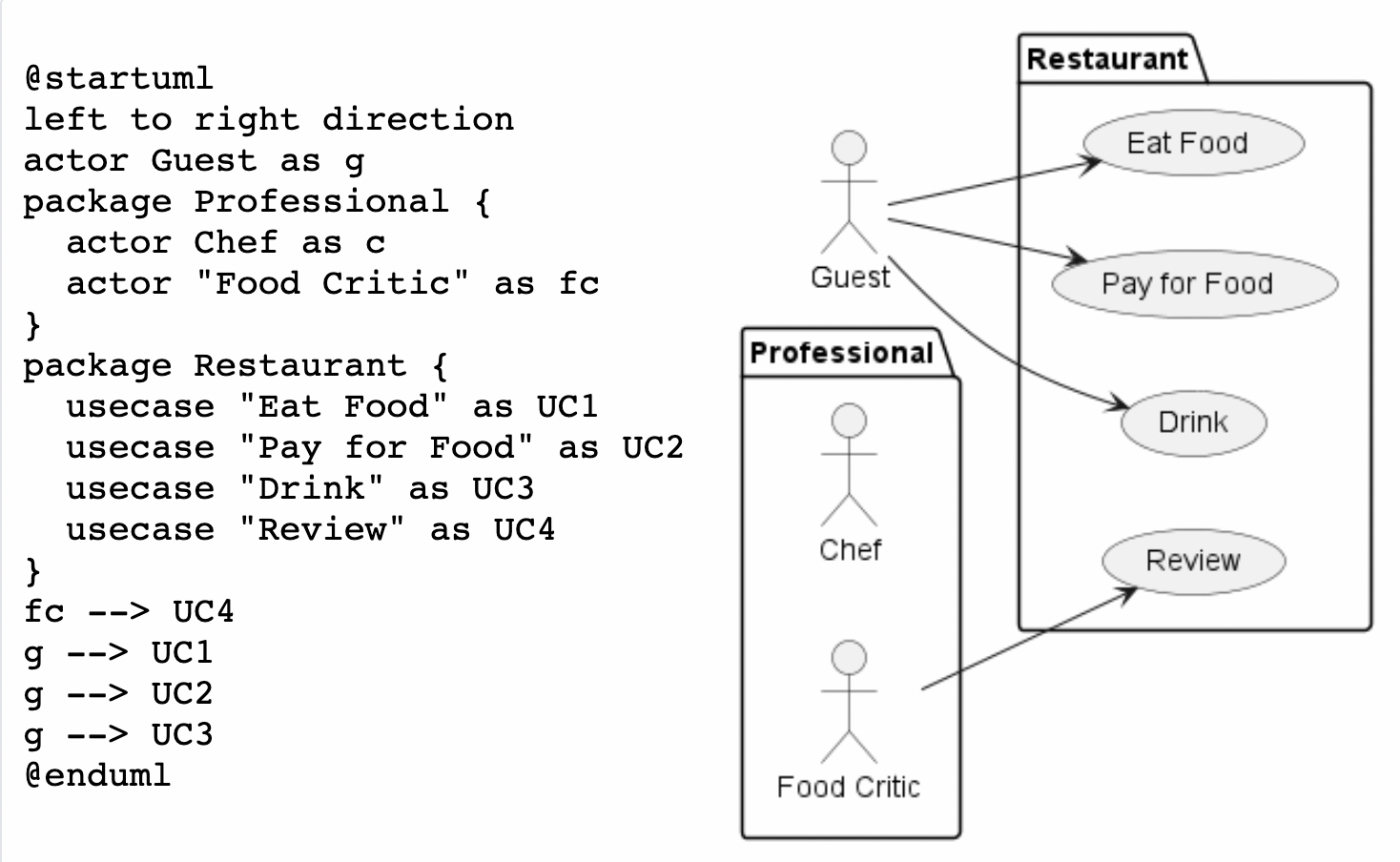

• Examples: PlantUML or yUML

Problems with models

• One only representation is not usually enough to correctly represent the static and dynamic nature of the architecture

• They are often not in sync with the code.

• There are tools for generating visual models directly from the source code via reverse engineering, but they generally include too many details.

UML diagrams

There are 14 types of diagrams. We need for guidelines regarding the number and type of notations to use.

Approaches for conducting the architecture design process

• Propose the use of a specific set of models and textual descriptions for representing different software views at different levels of abstraction and viewpoints.
• The most prominent ones:
  • 4+1 architectural view model, by Philippe Kruchten;
  • Arc42 templates, by Starke, Hruschka and Müller;
  • and ...

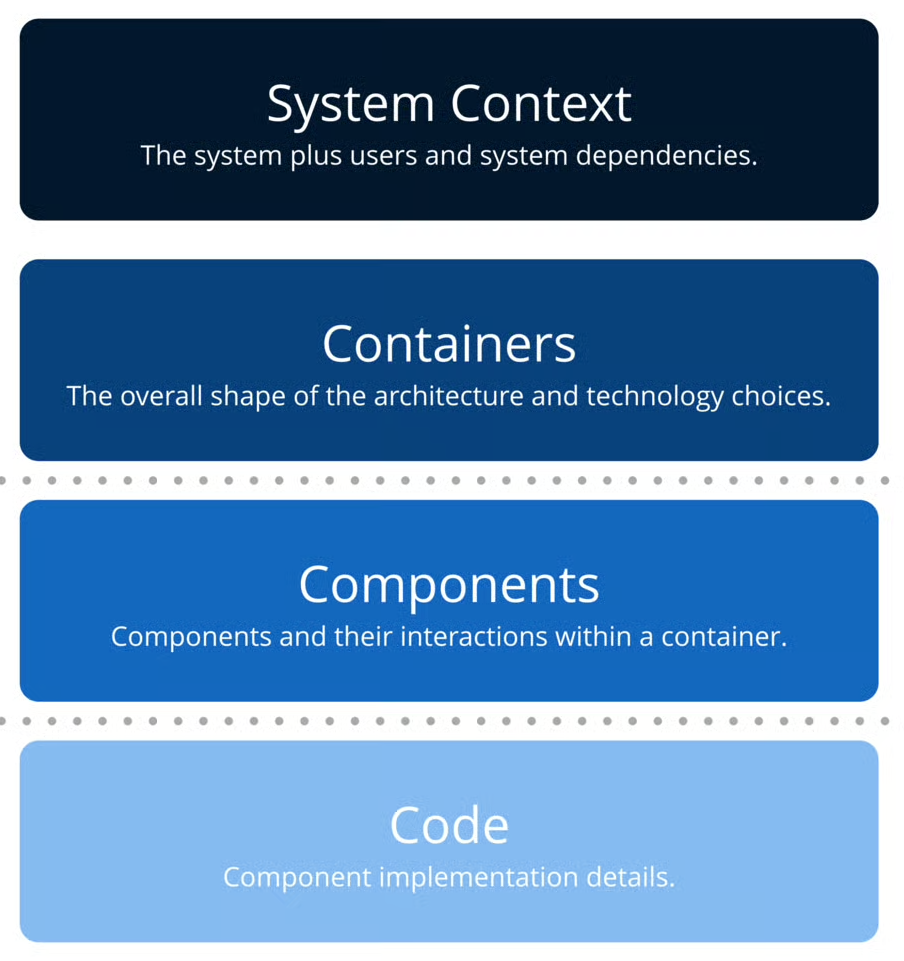

Simon Brown's C4 model

Level 1: System Context diagram

This diagram focuses on people (actors, roles, personas, etc) and software systems rather than technologies, protocols, and other low-level details. It's the sort of diagram that you could show to non-technical people. This includes the software system you are modeling, and the other software systems upon which your software system depends (or vice versa).

Example of a System Context diagram

Level 2: Container Diagram

This diagram shows the high-level shape of the software architecture and how responsibilities are distributed across it. It is useful for software developers and support/operations staff alike. The diagram shows the major technology choices and how the containers communicate with one another.

Container

A separately runnable/deployable unit

• Not Docker!
• GUI apps: desktop apps, mobile apps, web apps
• Non-GUI apps: console apps, shell scripts, serverless functions, etc.
• Datastores: database, blob or content stores, file systems.

Example of a Container Diagram

Level 3: Component Diagram

This diagram shows how a container is made up of components (the major structural building blocks), their responsibilities, and the technology/implementation details.

Its intended audience is software architects and developers.

Alternatively, we can use UML component diagrams or UML package diagrams.

Component

A software component is a unit of composition with contractually specified interfaces and explicit context dependencies. A software component can be deployed independently and is subject to third-party composition.
— Clemens Szyperski

Software components are libraries, i.e., things that are independently replaceable and upgradeable. Examples: Java's jars, C#'s assemblies, Ruby's gems, and Javascript's modules.
— Martin Fowler

Example of a Component diagram (Jar files)

UML component diagram

Component (alternative definition)

A component is a grouping of related functionality (classes) encapsulated behind a well-defined interface.
Aspects such as how those components are organized (packages, modules, JAR file, DLL, namespaces, shared library, etc) is a separate and orthogonal concern. In the C4 model, components are not separately deployable units.

— Simon Brown, C4 model

Example of a Component diagram

C4 version

Example of a Component diagram

UML component diagram

Example of a Component diagram

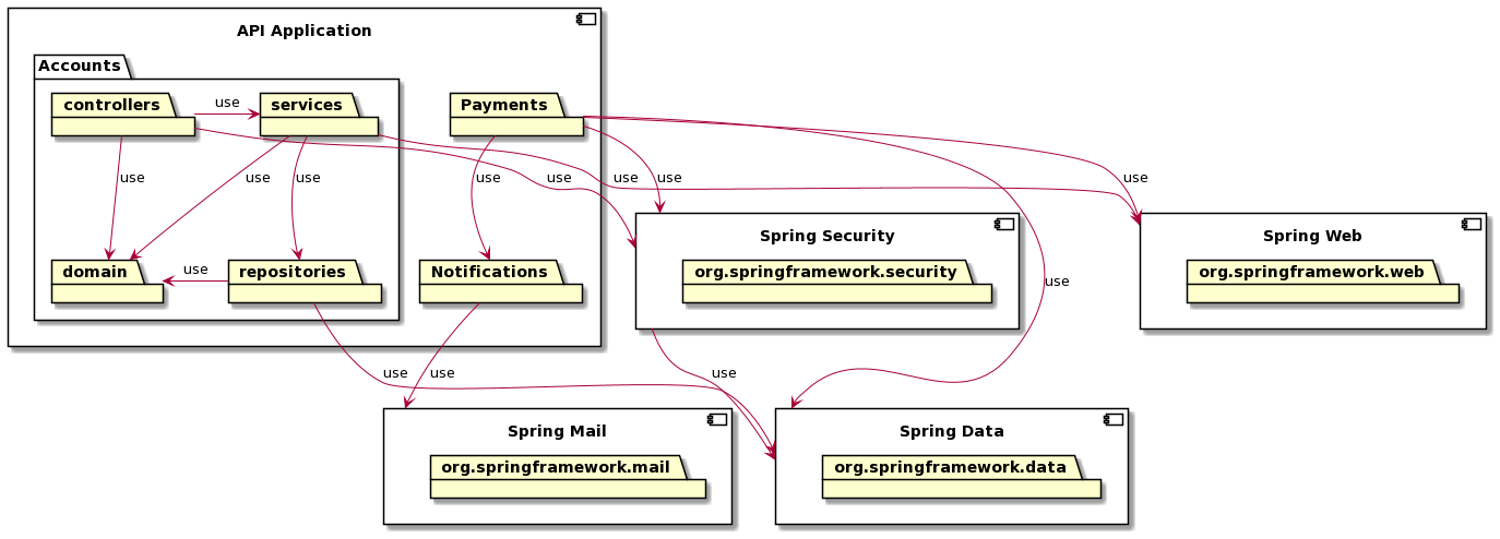

UML package diagram

Level 4: Code Diagram

This level of detail shows how each component is implemented as code, using UML class diagrams.

Ideally, these diagrams would be automatically generated using tooling (e.g. an IDE or UML modeling tool). This diagram is not recommended for the whole codebase but for the most important or complex components.

Example of a Code Diagram (UML class diagram)

System Landscape diagram

This diagram shows the system landscape from an IT perspective. It is a high-level map of the software systems at the enterprise-level, considering the organizational boundary, internal/external users, and internal/external systems.

Example of a System Landscape diagram

Dynamic diagram

This diagram can be useful when you want to show how elements in a static model collaborate at runtime to implement a user story, use case, feature, etc.

The diagram is based upon UML communication diagram.

Example of a Dynamic diagram

Deployment diagram

This diagram illustrates how software systems and/or containers in the static model are mapped to deployment nodes. They are something like physical infrastructure (e.g. a physical server or device) or virtualized/containerized infrastructure (e.g. IaaS, PaaS, a virtual machine, a Docker container).

This deployment diagram is based upon UML deployment diagram.

Example of a Deployment diagram

Tooling for C4 model

• Diagramming tools:

  • Visual: Microsoft Visio, Visual Paradigm
  • Textual: C4-PlantUML, c4builder

• Modeling tools:

  • Visual: IcePanel, Enterprise Architect, Gaphor
  • Textual: Structurizr

Let's practise..

Software architecture as code

Practical activity

1. Create a user and a new workspace in Structurizr to design the architecture of the "ACME Access Control System".
2. Create the C4 context diagram to show that the security staff is in charge of registering and authorizing new users in the system and providing them with ID cards based on NFC technology. Both external users and invited will be able to enter ACME's premises using their cards.

Practical activity (cont.)

3. Create the C4 container diagram to depict that the system is based on a headless app written in Python that reads NFC cards and communicates with an Oracle database to authorize users and log user activity. In addition, there is a Qt-desktop application for managing users stored in the database.
4. Create the deployment diagram to depict that the Python apps will run on two PLC Raspberry Pi, the database will be hosted and replicated in two machines on the ACME datacenter, and the desktop application will be running on the Security staff's computer.

REFERENCES

• Mark Richards: Software Architecture Monday, https://www.developertoarchitect.com/lessons/
• Simon Brown: The C4 model for software architecture, https://c4model.com/
• Markdown Architectural Decision Records, https://adr.github.io/madr/
• AADL standard, https://www.aadl.info/
• Structurizr, https://structurizr.com/
• PlantUML, https://plantuml.com/
